J210f temperature to high problem solution 1000000% Working.

Samsung Galaxy J210f Temperature to high problem solution
1000000% Working.

If Show charging but error of temperature high and low


Step 1 get diagram

In Image 1,
In first step picture we have the structure drawed of j210f device this structure is charging section its is the main in rolling solution . pls study this structure and we drawn the  line goes to charging connector  current how to passing filter and ic through to the mobile battery .

Step 2 Replace Regulated 👇👇show in img

In Image ,

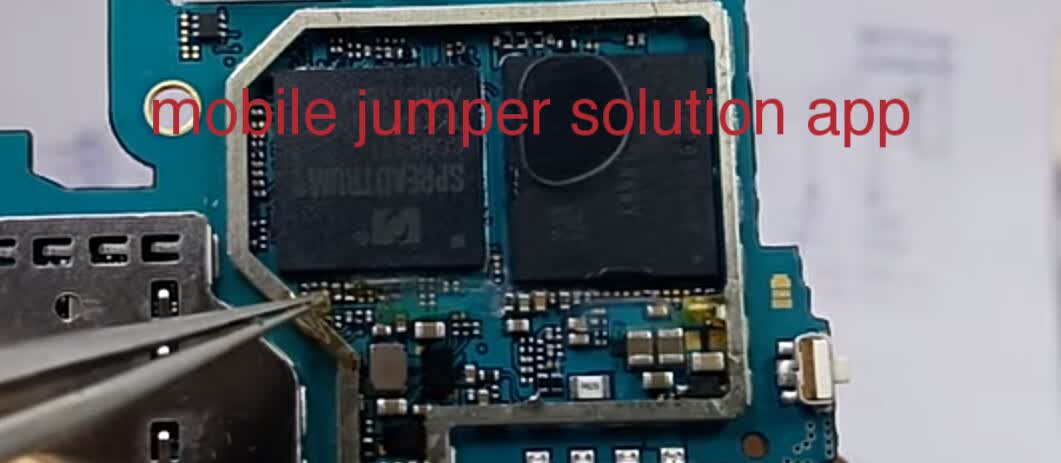

     In this image we checking the resistonce and capasitor damaged or not and also cheking the voltages are provide to the ic or not  if somthing error are found in your device hecne thoes part on your device

 Step 3 check voltage👇👇
In Image ,

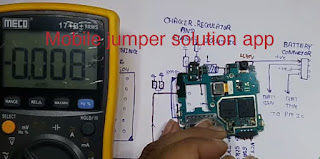

     In this image we checking the volltage , Check the voltage as shown in figure or drawed diagram
 Step4 also check voltage👇👇

In Image ,

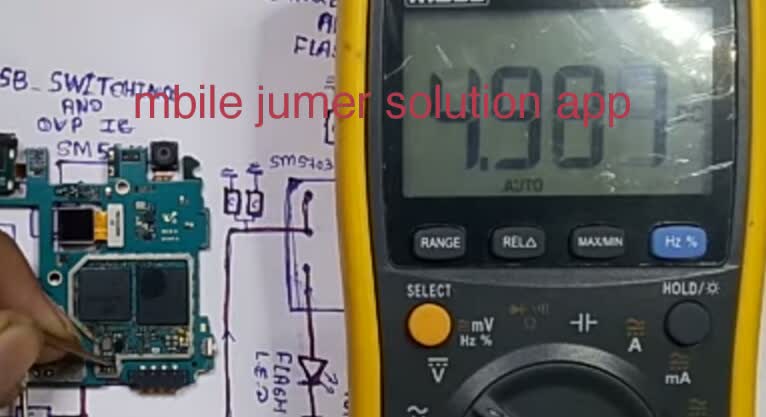

     In this image here also we checking the volltage , Check the voltage as shown in figure or drawed diagram
Step 4 check voltage👇👇
In Image ,
     In this image here also we checking the volltage , Check the voltage as shown in figure or drawed diagram
Final solution if every thing is then replace pm ic 👇👇👇👇1000% problem solution

In Image ,

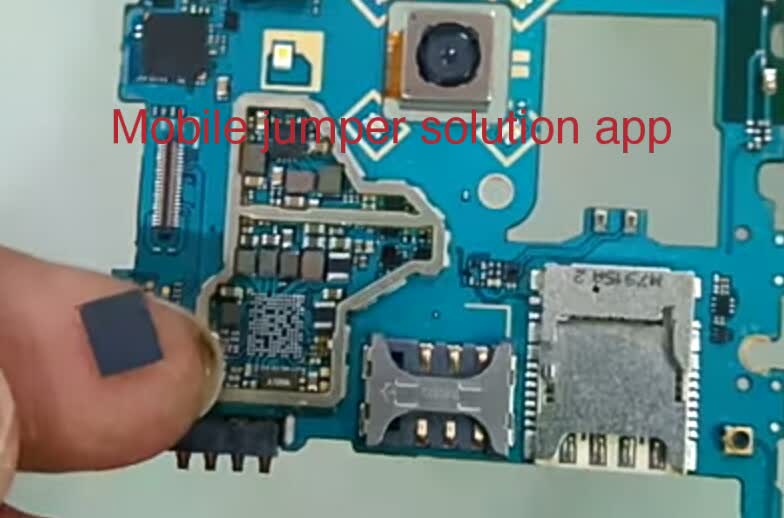

     In this image  we have to checking the ice volltage , Checked the voltage not correct then you have to chang ic  then your problem 10000% fix
Samsung galaxy J210f  Loading solution Jumper problem
some charging problems Samsung galaxy J210f   Charging heating solution Jumper Problem Means Charging is not supported
After disassembling the mobile phone, you need to perform some steps as shown in the above diagram. check the charging plug and its points if they have a good value, if yes, change the charger and check it and if the charging points on the motherboard do not show an accurate value with the meter, you need to check all parts and tracks shown in Samsung galaxy J210f   Diagram.

Look at the motherboard, carefully vary if there is rust or carbon and water damage or if any part is damaged. if a track is missing, install the jumpers as shown and if any part is damaged or broken, replace it with a new one.

Keep visiting this page for more information and new tips and tricks on this troubleshooting, we will update when new updates arrive. Below you will also find some related articles, you can learn more about mobile phones.

Please note that although every diagram and solution displayed on our website has been tested by one or more of our team before posting, we are not responsible for any loss or damage, including personal injury. Use this repair solution at your own risk.
